Pipe Storage Rack-

Working Principle of Pipe Storage Racks for Sale

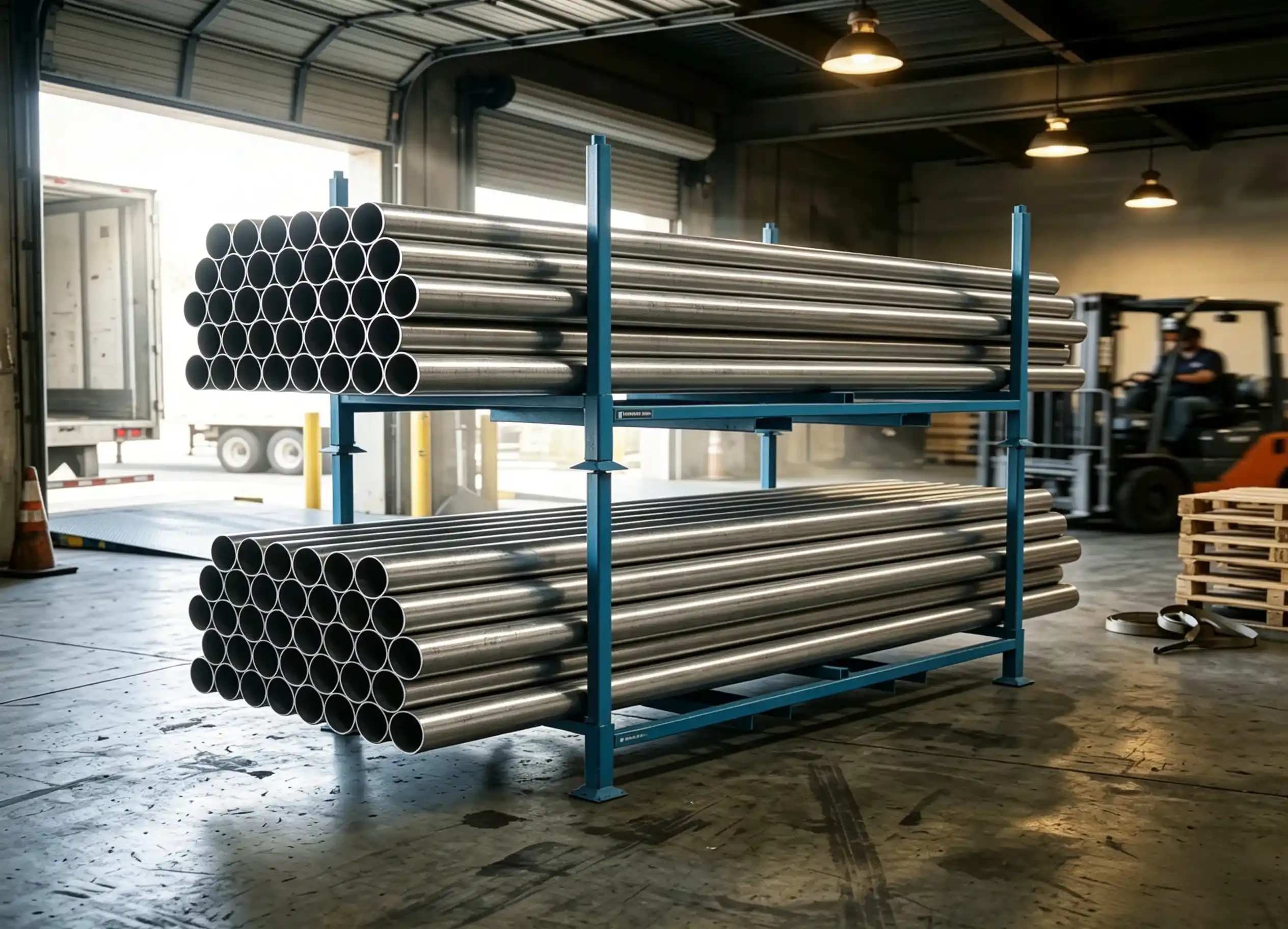

Pipe storage racks are specially designed for long tubular materials. Their unique open cantilever structure distinguishes them from conventional warehouse racks. They rely on a scientifically designed stress structure to achieve stable storage and convenient access. The working principle is explained in detail below.

Load-Bearing Principle

The uprights bear the overall weight, while multiple cantilevered layers act as independent load-bearing platforms, evenly distributing pressure on the pipes and preventing deformation, compression, and collapse caused by direct stacking. The load is transferred to the ground through the base, ensuring stable and uniform load-bearing.

Storage and Retrieval Principle

The racking has no beams obstructing the front, creating a fully open working space. Forklifts can load and unload long pipes laterally from the front. Unlike ordinary beam racking, which is limited by front and rear frame restrictions, extra-long pipes can be directly accessed, significantly improving the efficiency of long material handling.

Overall Stability Principle

Each rack group is connected as a whole by tie rods, feet, and wall connectors. Cantilever ends are equipped with stop blocks to prevent pipes from rolling and slipping. High racks can be fitted with fixing accessories to eliminate the risk of tipping or tilting under load.

Space Utilization Principle

The cantilever height and number of layers are freely adjustable, allowing for separate storage of pipes of different specifications, preventing haphazard stacking. This fully utilizes the warehouse's vertical height, increasing storage capacity and facilitating the categorized management of pipes

Advantages & Features of Pipe Storage Racks for Sale

Leveraging its proprietary cantilever structure and modular design, the pipe storage rack offers several unique warehousing advantages compared to traditional ground stacking and ordinary beam racks, comprehensively optimizing pipe storage efficiency, managing storage risks, and reducing storage costs.

Suitable for Long Material Storage

With no front beams obstructing the view, extra-long pipes such as steel pipes, PVC pipes, and long profiles can be directly accessed horizontally, solving the problem of ordinary shelving being unable to store long items.

Stable and Safe Load-Bearing Capacity

The uprights, combined with layered cantilever arms, distribute the load. Equipped with retainers and tie rods for reinforcement, it prevents pipes from rolling and shelving from tipping over, and is resistant to deformation under heavy loads.

High Space Utilization

Suitable for Long Material Storage:With no front beams obstructing the view, extra-long pipes such as steel pipes, PVC pipes, and long profiles can be directly accessed horizontally, solving the problem of ordinary shelving being unable to store long items.

Clear Categorization and Management

Pipes of different specifications and materials are stored in separate layers and areas, facilitating inventory and sorting, and significantly improving forklift loading/unloading and material management efficiency.

Wide Style Adaptability

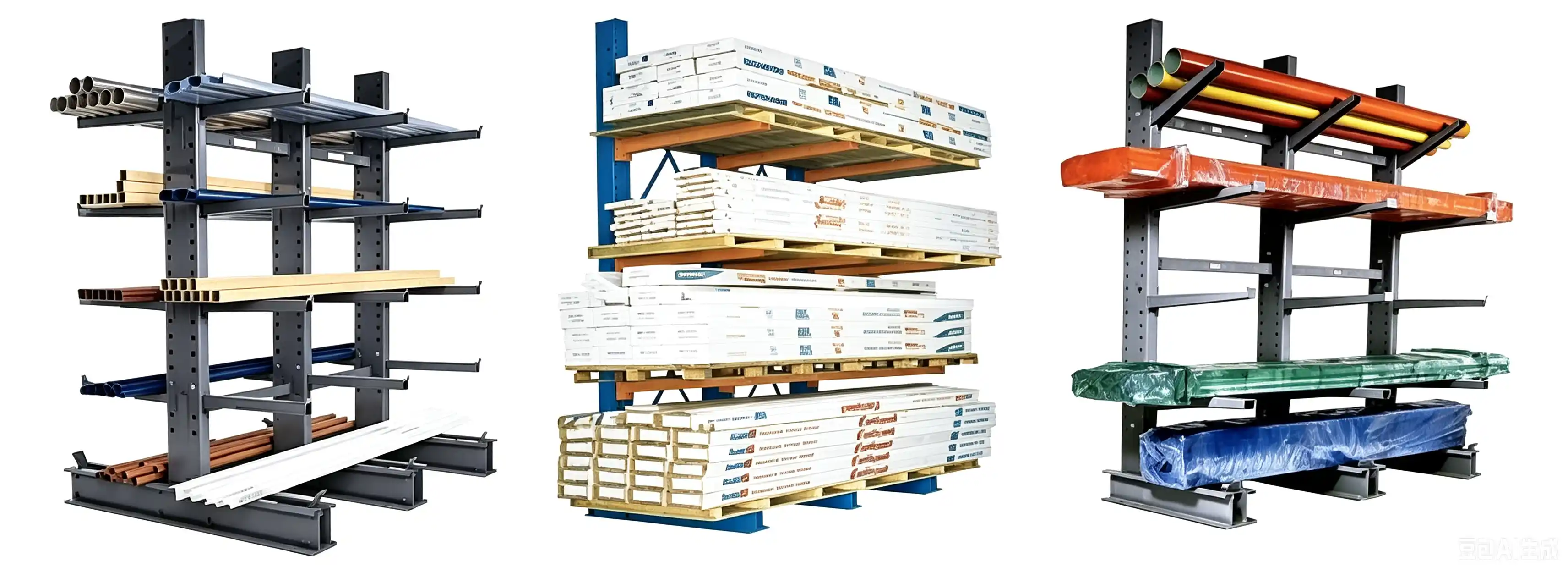

A variety of styles are available, including light, medium, and heavy-duty models, single and double-sided options, indoor powder coating, and outdoor hot-dip galvanizing, suitable for steel markets, processing plants, outdoor storage yards, and other scenarios.

Flexible Assembly and Maintenance

The modular splicing structure allows for adding or removing layers and lengthening combinations as needed; parts replacement is simple, and subsequent inspection and maintenance are convenient.

Choosing our branded pipe storage racks provides a one-stop solution for all your pipe storage needs. Our professional structural design balances safety, efficiency, and space utilization. We offer complete customized solutions for indoor, outdoor, and light-to-heavy load scenarios. Our stable and durable storage equipment helps you simplify material management and reduce storage costs. Feel free to contact us for your exclusive warehouse planning solution.

Application Scenarios of Pipe Storage Racks for Sale

With stable structure and flexible adaptability, our pipe storage racks are widely used in pipe processing, steel trade, logistics warehousing, engineering construction and other industries, covering standardized storage and efficient management of various long materials.

Steel Profile Market

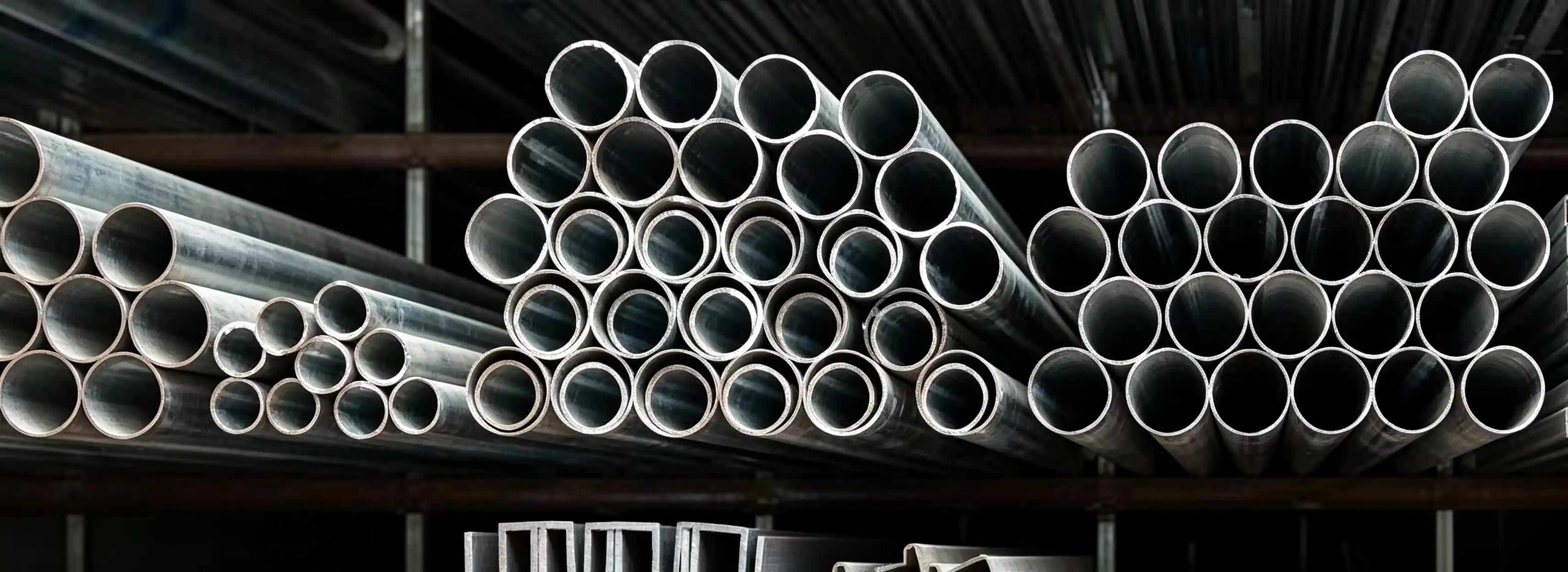

Stores seamless steel pipes, angle steel, channel steel, alloy bars, and stainless steel pipes; suitable for steel trading yards and metal profile warehouses.

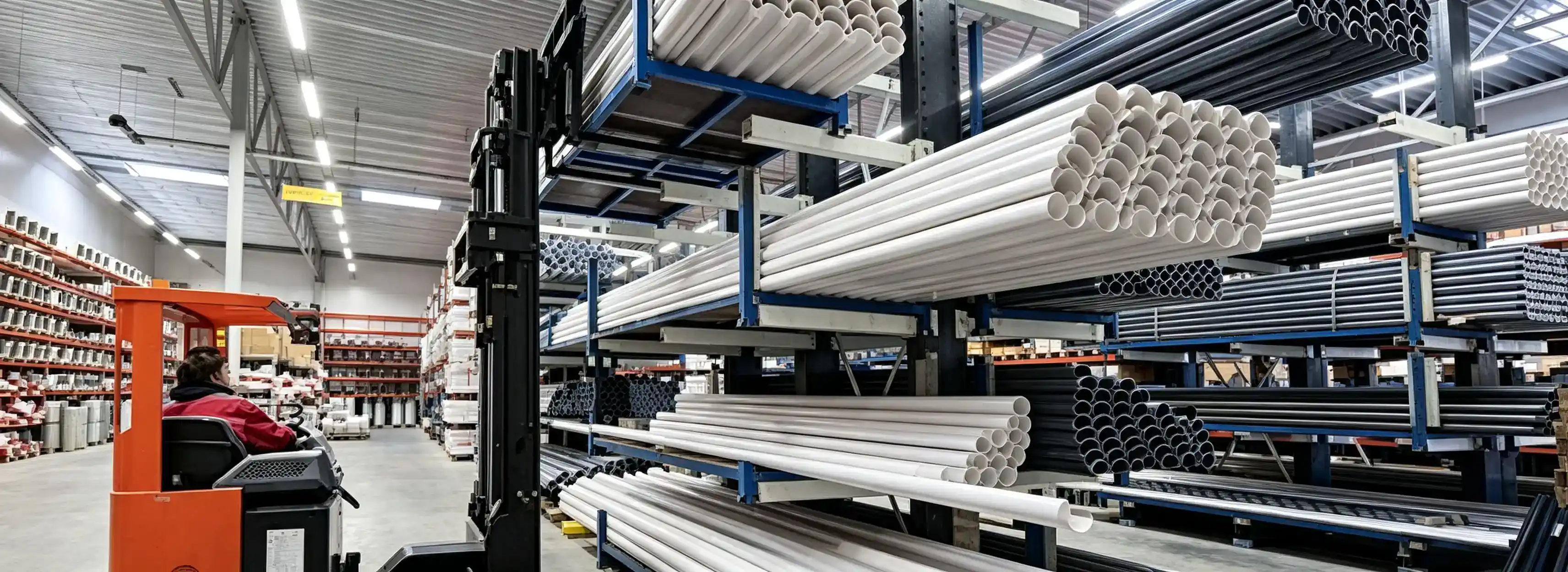

Stores PVC, PE, and PPR water supply and drainage pipes, and electrical conduits; suitable for pipe production workshops and finished product storage areas.

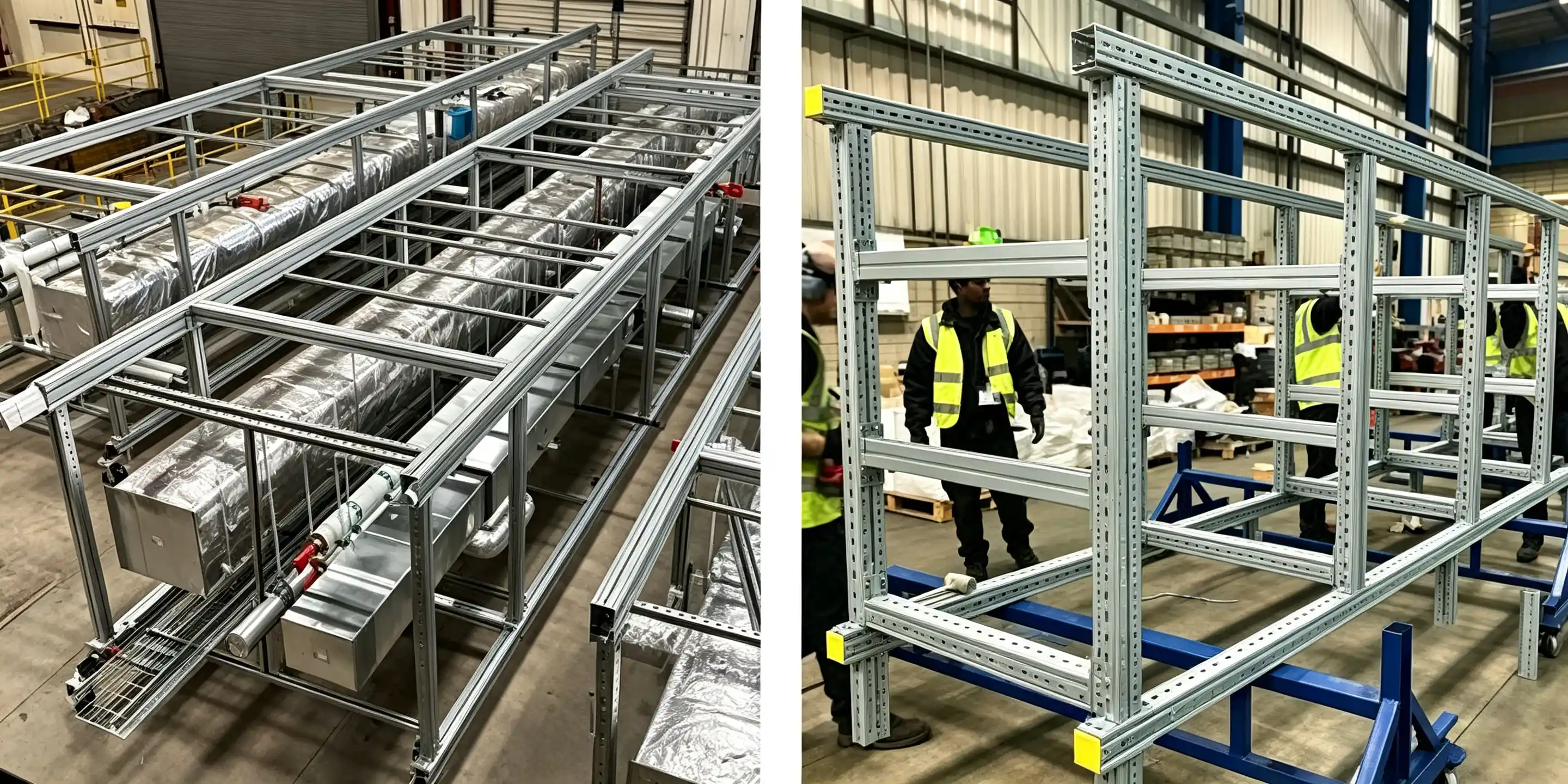

HVAC & Mechanical Industry

Stores ventilation ducts, cable trays, busbars, and aluminum cable trays; serves HVAC contractors and electrical equipment factories.

Furniture & Timber Industry

Stores solid wood strips, decorative wood moldings, aluminum alloy furniture profiles, and curtain rods; suitable for whole-house customization factories and board warehouses

Hardware & Machinery Workshop

Stores copper bars, aluminum pipes, and various long raw materials for machining, facilitating material requisition and categorized processing in the workshop.

Logistics & Distribution Center

Centralized sorting and turnover of various long pipe materials; suitable for third-party logistics and specialized long material distribution warehouses.

Outdoor Open-Air Storage Yard

Utilizes hot-dip galvanized pipe racks to store large pipes and log profiles, saving indoor warehouse space

All of the above-mentioned industry warehousing scenarios are suitable for pipe storage racks. Whether it is an indoor production workshop, a steel trading warehouse, or an outdoor open-air storage yard, light, medium and heavy-duty pipes of different specifications can be stored in an orderly manner, providing a one-stop solution to warehousing problems such as messy stacking of long tubular materials, difficulty in access, and significant safety hazards.

Services Provided by A Professional Pipe Storage Rack Manufacturer

Our professional pipe storage rack manufacturer delivers full-cycle, one-stop supporting services covering pre-sales planning, customized design, standardized production, export logistics, on-site technical guidance and after-sales maintenance. We tailor targeted solutions for steel tubes, plastic pipes, aluminum profiles and other long raw materials to resolve all warehouse storage pain points for global industrial clients.

Precise Cost Accounting and Rapid Quotation Service

Our business team conducts meticulous cost accounting based on all parameters, including client warehouse drawings, pipe specifications, storage tonnage, racking configuration, and export transportation methods, generating detailed itemized quotations. We differentiate between various trade terms such as FOB, CIF, and DDP, simultaneously listing costs for raw materials, processing, painting, packaging, logistics, and documentation. Tiered pricing is offered for bulk orders, and we respond quickly to inquiries from overseas clients.

Warehouse Planning and Customized Design Service

Equipped with professional structural engineers, we provide integrated layout planning for various long and narrow materials such as round pipes, square pipes, profiles, aluminum profiles, and plastic pipes, taking into account factory space dimensions, forklift models, single-batch storage tonnage, and storage and retrieval operation modes. We can customize cantilever, vertical, mobile, and multi-layer heavy-duty pipe racks, precisely matching material length, weight, and stacking capacity, and providing professional CAD warehouse floor plans, 3D renderings, and structural stress calculation reports.

Standardized Industrial Production and Flexible Customization

Standardized mass production of a full range of light, medium, and heavy-duty tubular storage racks, supporting adjustments to arm length, layer height, single-layer rated load capacity, column spacing, and anti-rust coating processes. Component disassembly can be optimized according to container loading dimensions, adapting to 20GP/40GP full container exports, flexibly matching small-batch sample orders with large-volume project orders.

Complete Set of Professional Technical Documents

Providing rack load-bearing test certificates, ISO production qualification documents, parts size lists, step-by-step installation drawings, bolt and accessory lists, and safety load usage specifications to meet the documentation requirements for overseas project acceptance, customs clearance, and factory safety audits.

One-Stop Export Support Services

Providing complete customs declaration documents, certificates of origin, packing lists, and commercial invoices; using standardized export packaging with thickened stretch film, angle iron corner protectors, and steel strapping to effectively prevent damage and deformation during sea transport; assisting clients in calculating full container loading dimensions to optimize loading rates and reduce overall logistics costs.

Comprehensive Technical On-the-Site Guidance Service

A multilingual assembly manual and installation tool list are included with the shipment; online video remote installation guidance is supported; on-site engineer support is available for large, heavy-duty pipe racks; forklift operation guidelines are provided to avoid overloading, tipping over, and other warehouse safety hazards.

Long-Term Warranty and Spare Parts Maintenance Service

The main steel structure of the racks comes with a multi-year structural warranty; after-sales replacement and repair solutions are provided for paint peeling, structural deformation, and welding defects; common spare parts such as beams, cantilever arms, latches, and feet are readily available for rapid individual shipment, ensuring long-term stable warehouse operation.

Warehouse Efficiency Optimization Consulting Service

Addressing the warehousing pain points of industries such as pipe processing, steel pipe trading, construction materials, and plastic pipe manufacturing, we provide solutions for optimized workflow, zoned storage, and batch retrieval to improve warehouse space utilization and reduce material handling time and pipe loss.

We provide a full-chain, one-stop service, from initial quotation and planning, customized production to export logistics and after-sales maintenance, comprehensively addressing all pipe warehousing needs. Our complete set of professional solutions reduces procurement and warehousing operating costs, continuously creating efficient and secure storage solutions for global pipe industry clients.
